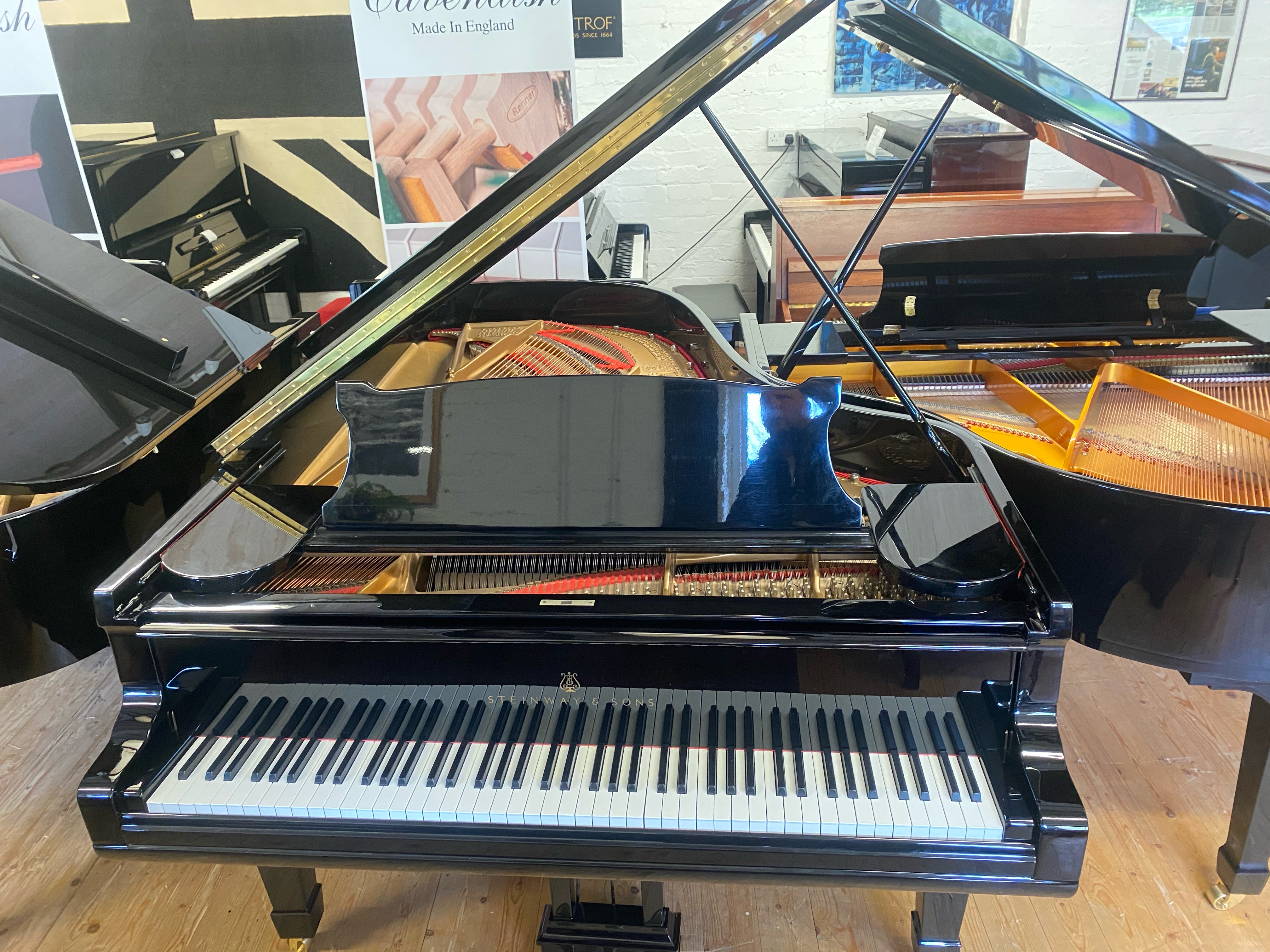

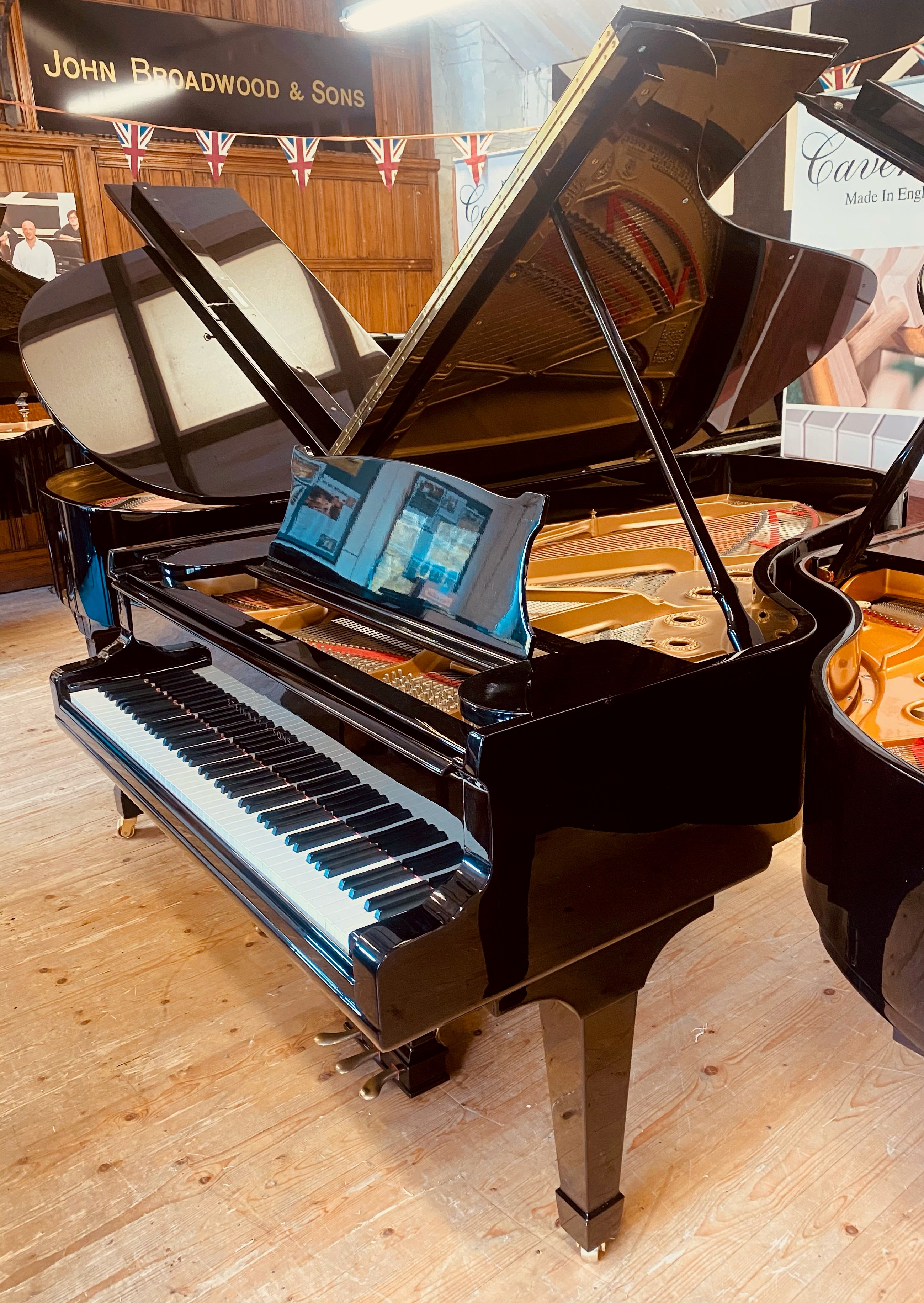

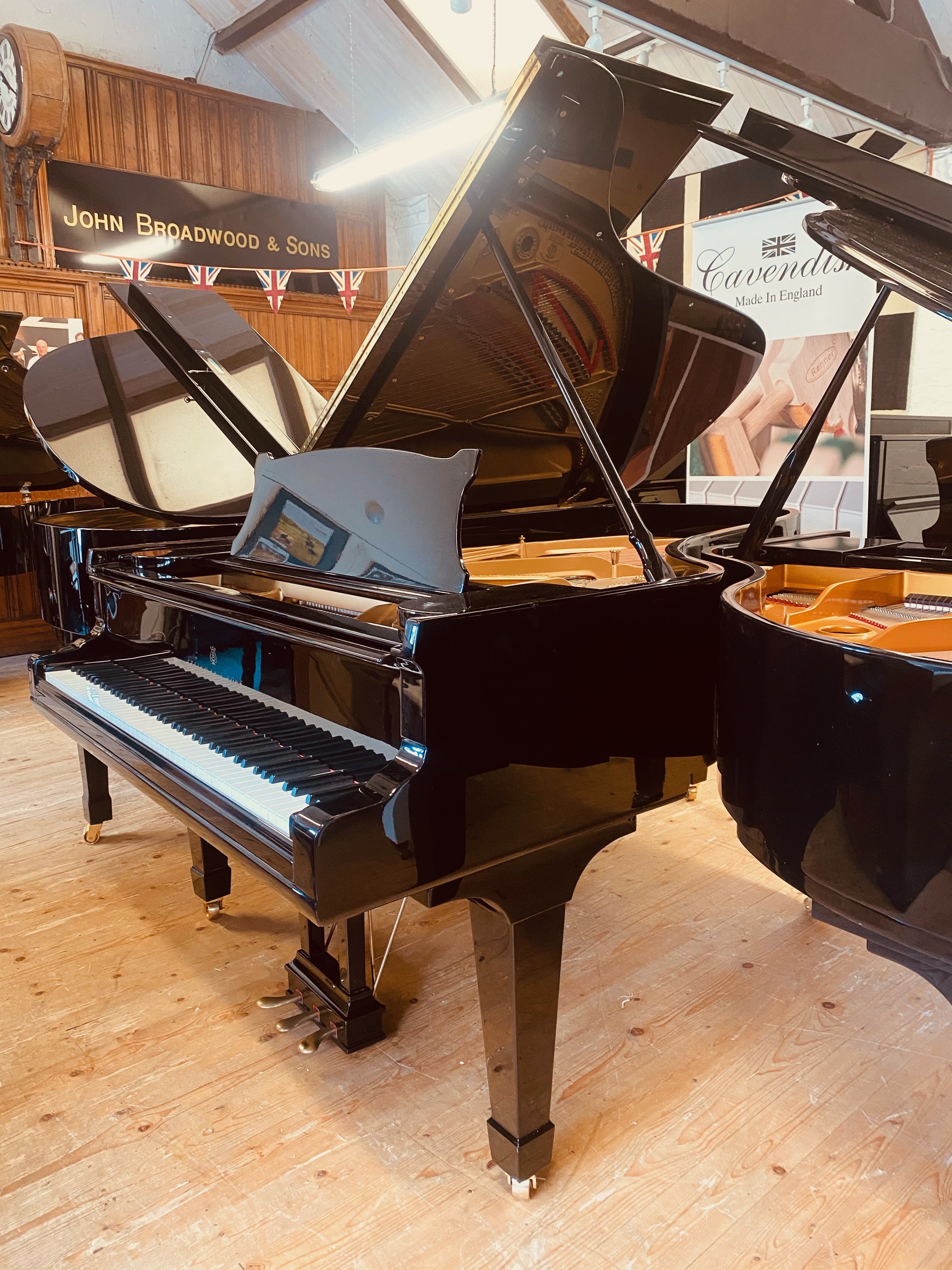

Steinway Model B





image4(2)

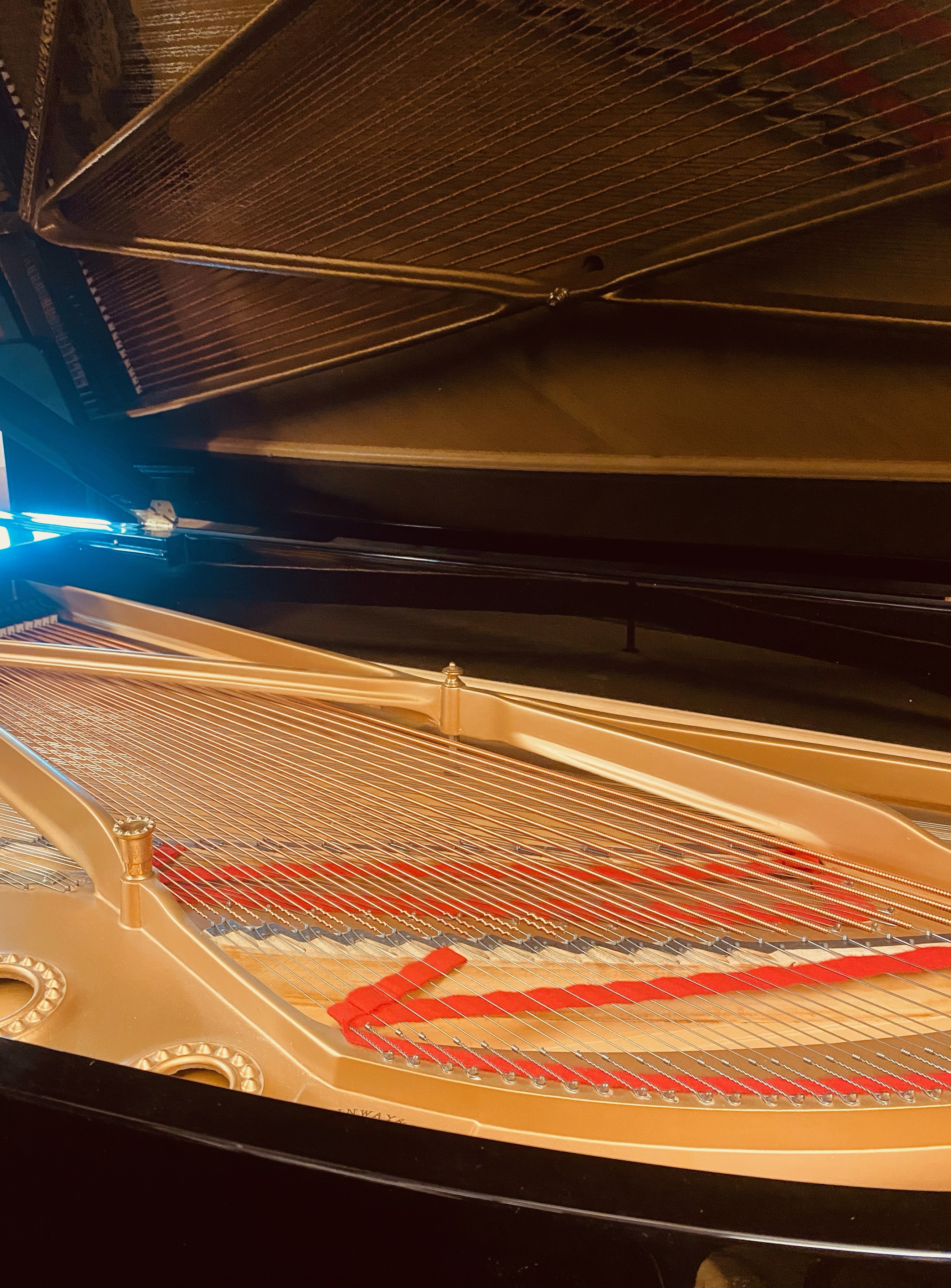

Please take time to browse the following photos to see the level of craftsmanship of piano restoration…

image0(6) image2(1) image4(3) image2(3) image3(4) image4(1) image1(4) image0(8) image3(3) image0(7) image0(5) image3(1) image4 image3(2) image2(2)

DIMENSIONS

Length: 6′ 11″ (211cm)
Width: 58″ (148 cm)
Net Weight: 760 pounds (345 kg)

BRACES

4 solid spruce braces with a volume of 1,995 cu. in. (32,686 cm3); Spruce provides tensile strength with less weight. Maple dowels fasten braces to rim producing a single homogenous foundation upon which is built the entire tonal component. A cast iron treble bell, affixed to rim’s underside at treble bend, holds plate firmly in position by means of a steel bolt. The Steinway & Sons iron wedge anchors brace ends securely to crossblock assuring permanent rim posture.

SCALE

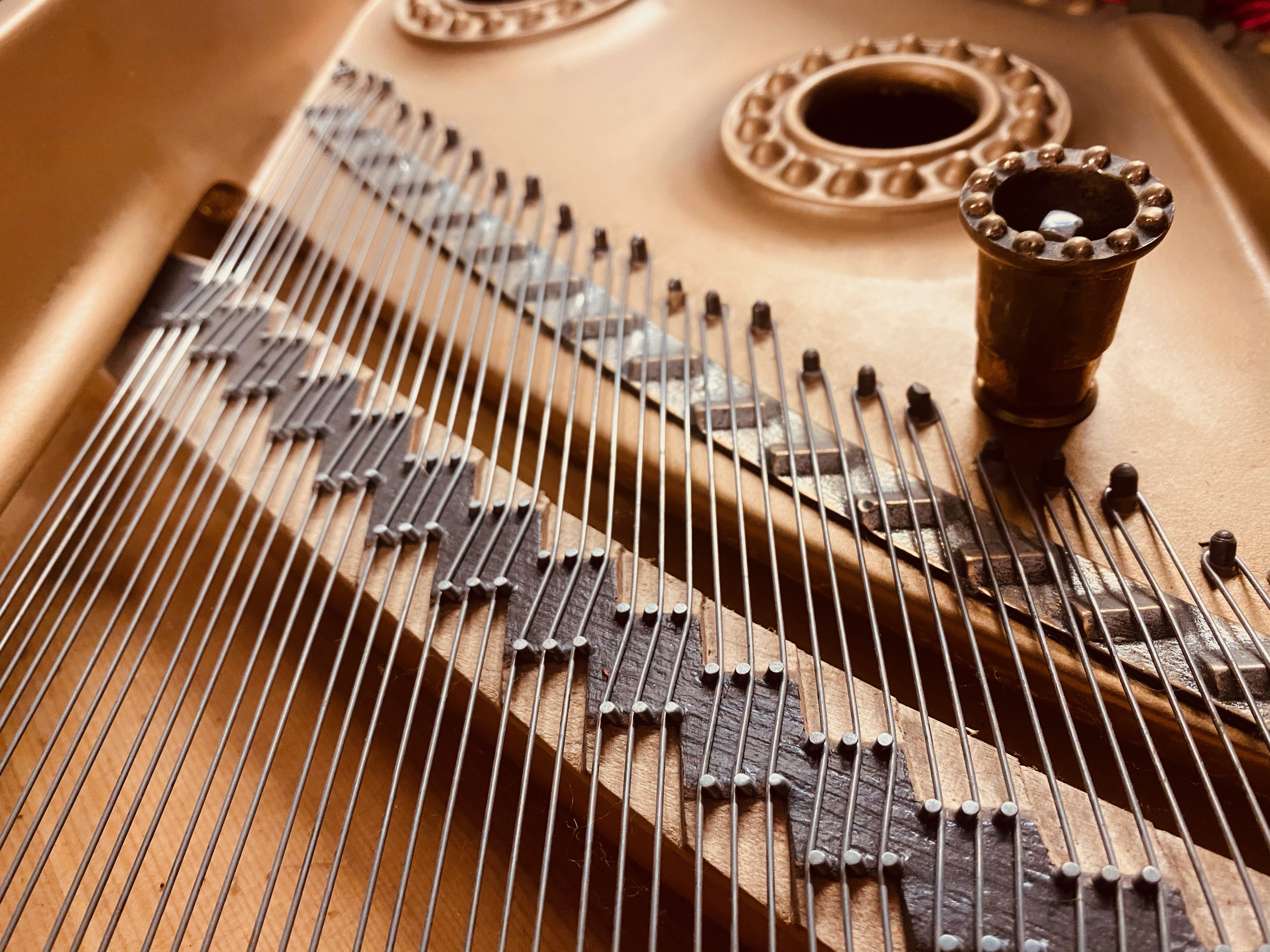

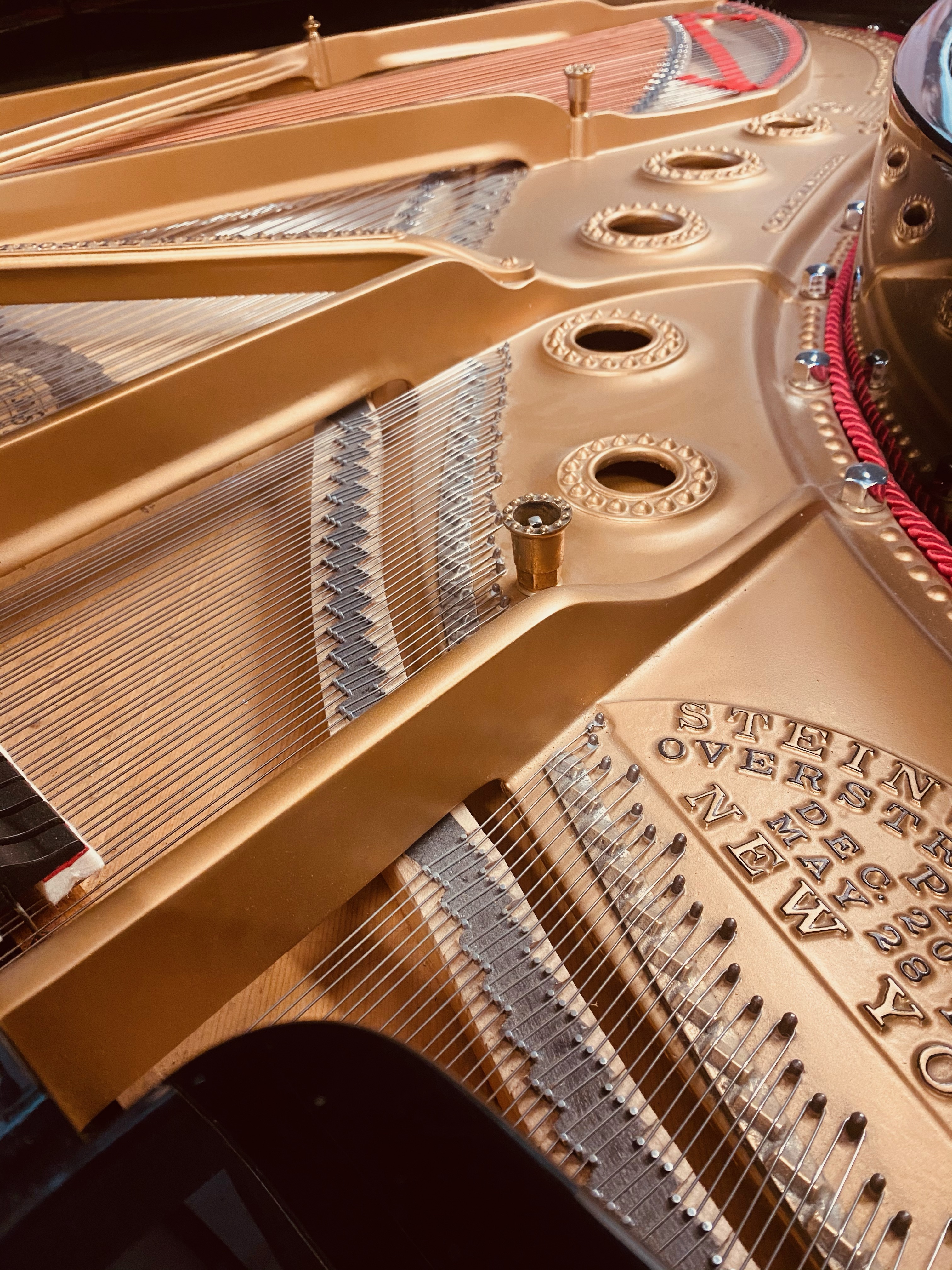

Overstrung; combination agraffe; Front AND rear duplex.
Tension: 39,047 lbs. (17,571 kg)

RIBS

Made from durable, resinous sugar pine to assure strong and constant support of string down-bearing on the soundboard; rib ends are hand-fitted.

TUNING PINS

Premium blued steel; rust-resistant, nickeled heads

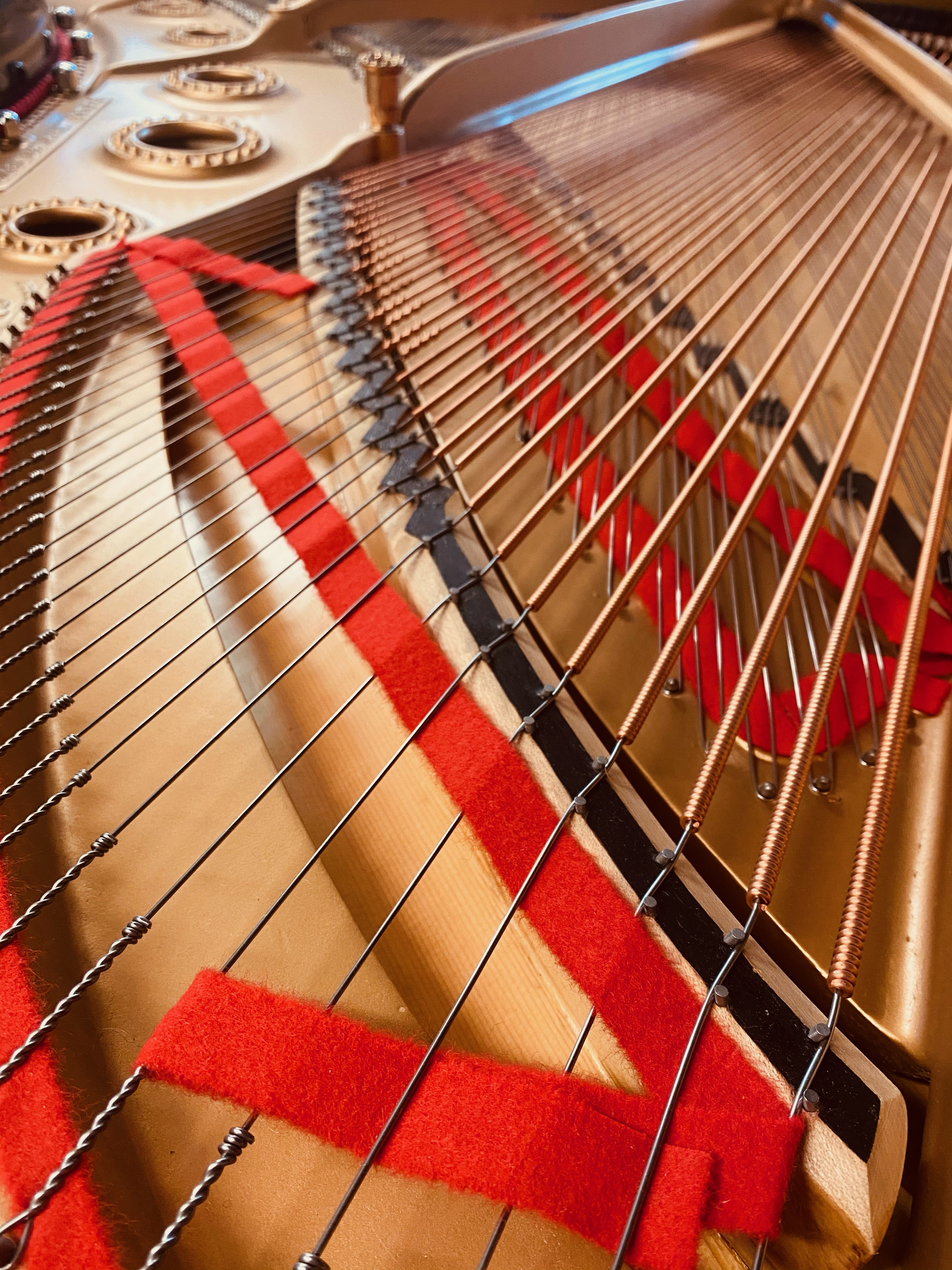

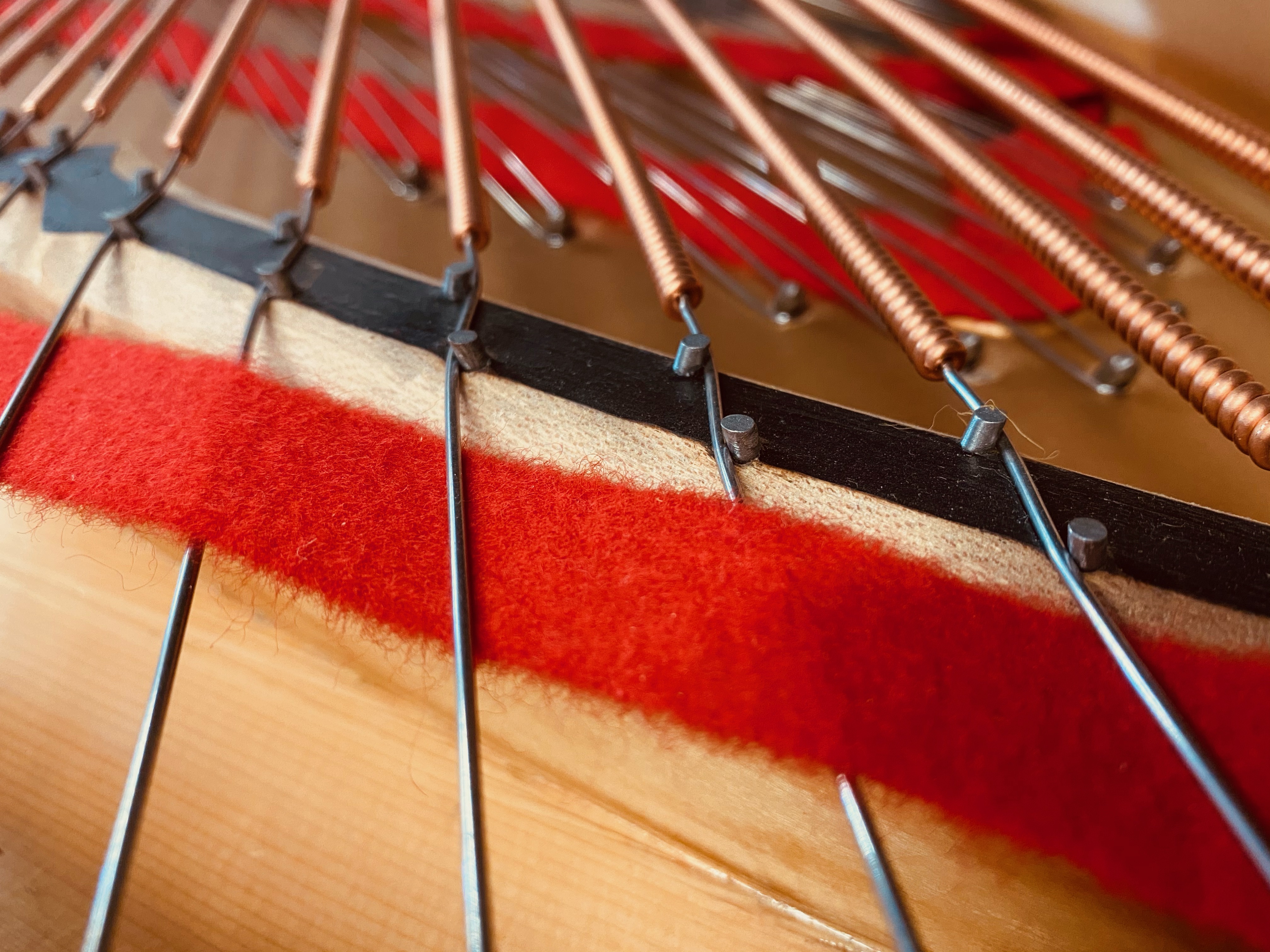

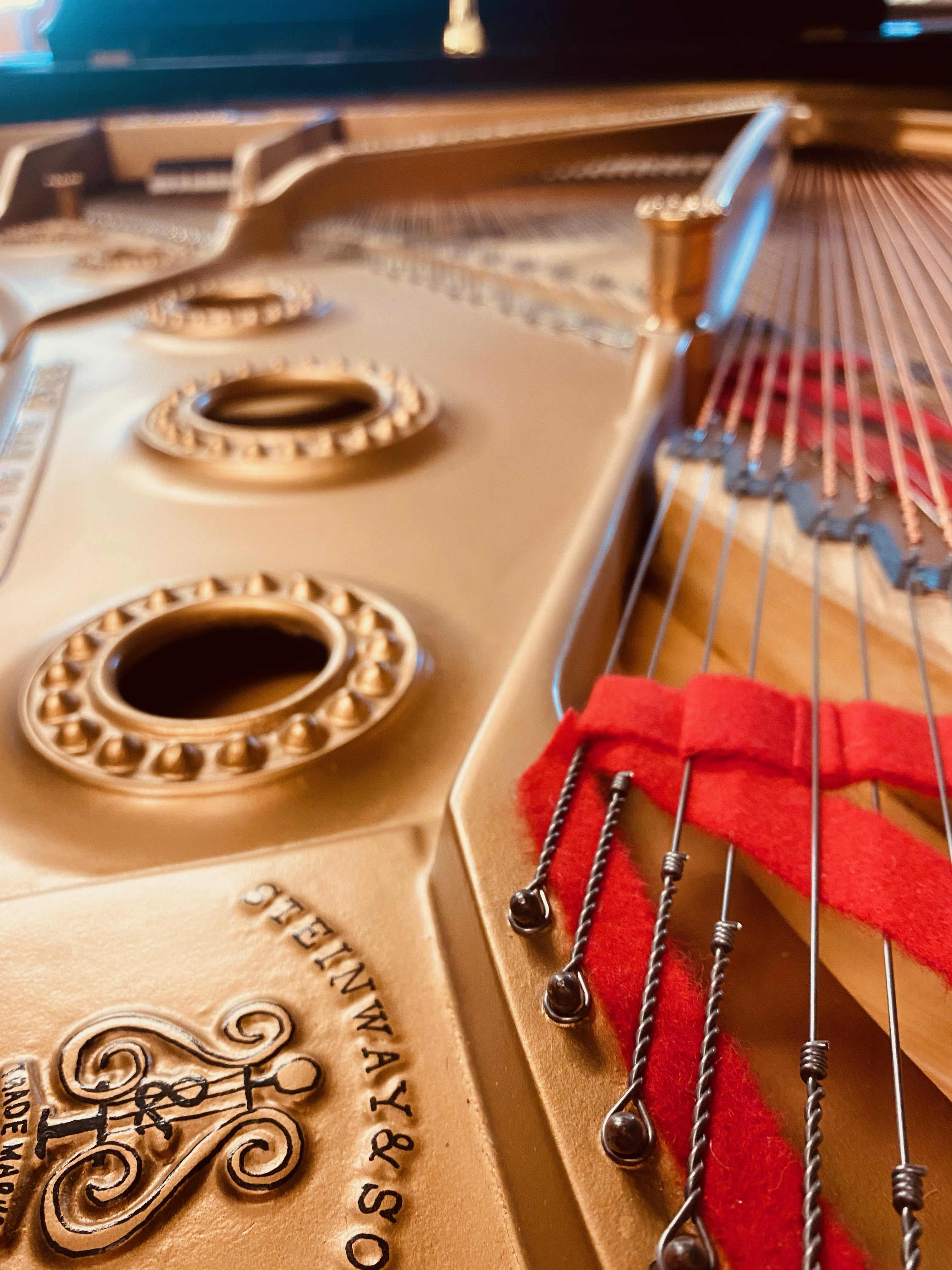

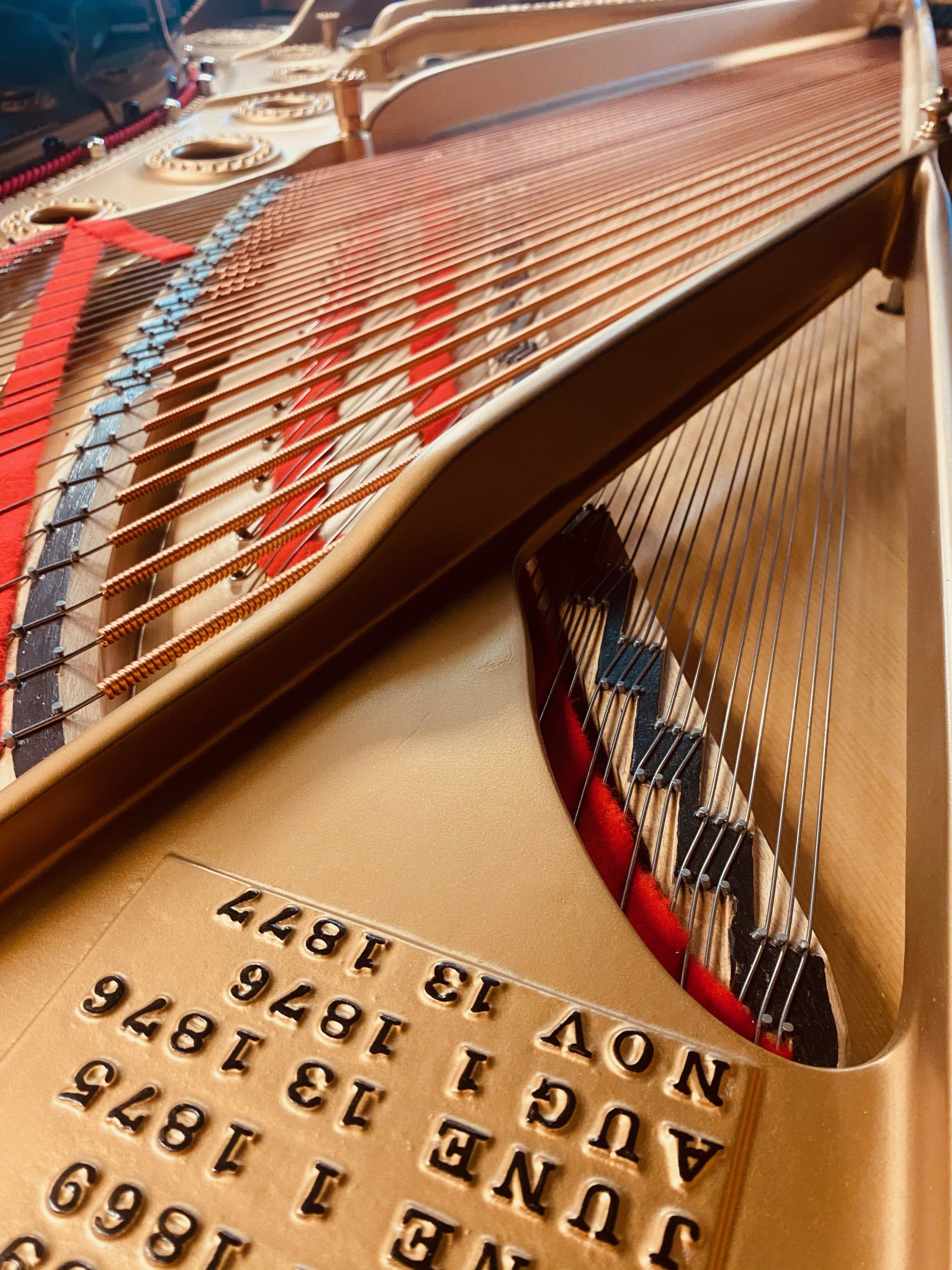

STRINGS

Treble: Twelve whole & one-half sizes from high-tensile Swedish steel.

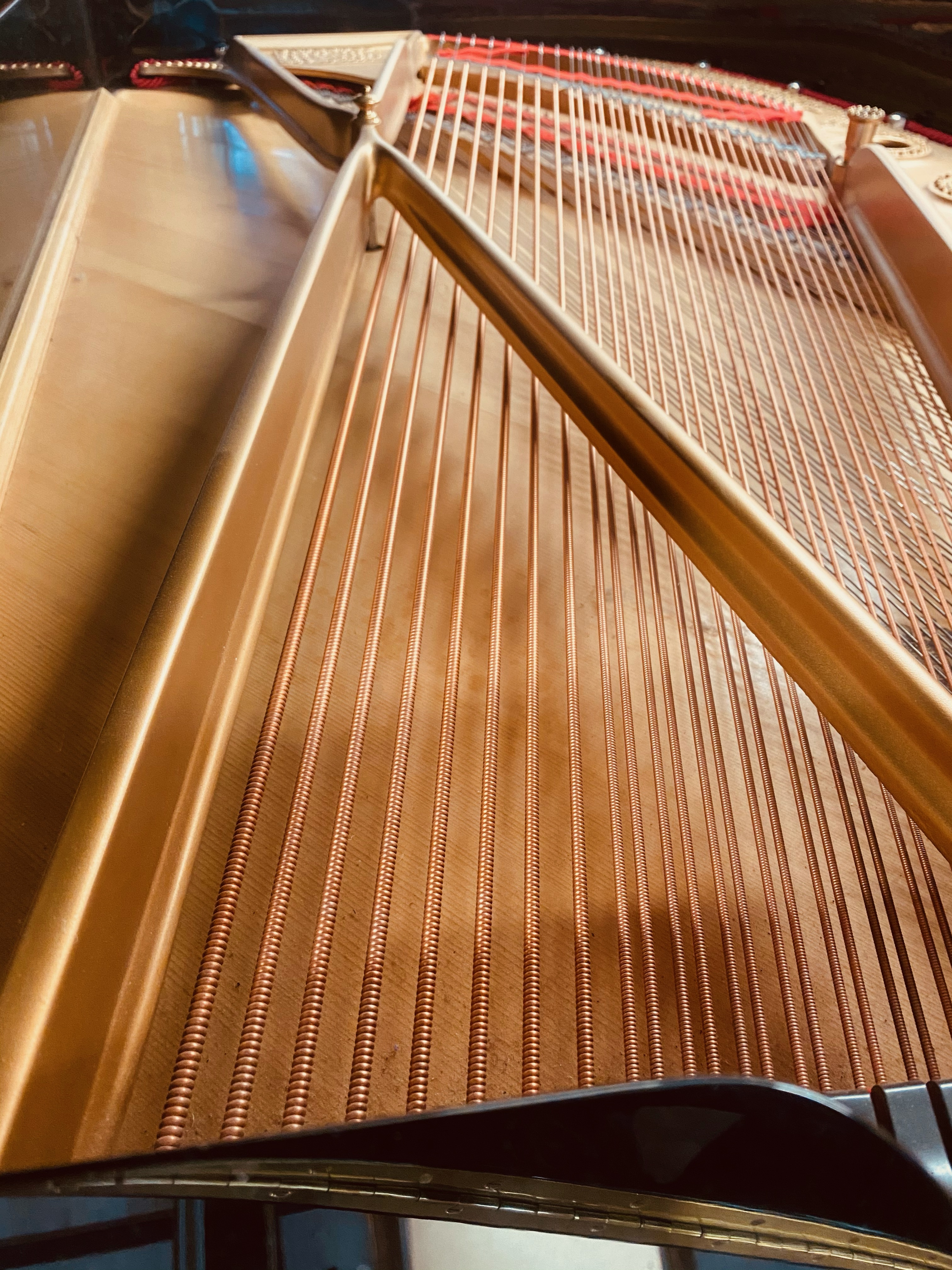

Bass: Swedish steel core wire wound with pure copper.
Longest: Agraffe/bridge: 59¼” (151 cm)

HAMMERS

Premium wool top felt and under felt; treated to resist insects and moisture. Compression-wired to maintain permanent shape. Hard rock maple hammer mouldings and shanks.

DAMPERS

Horizontal-cut premium wool for effective dampening with maple heads for endurance.

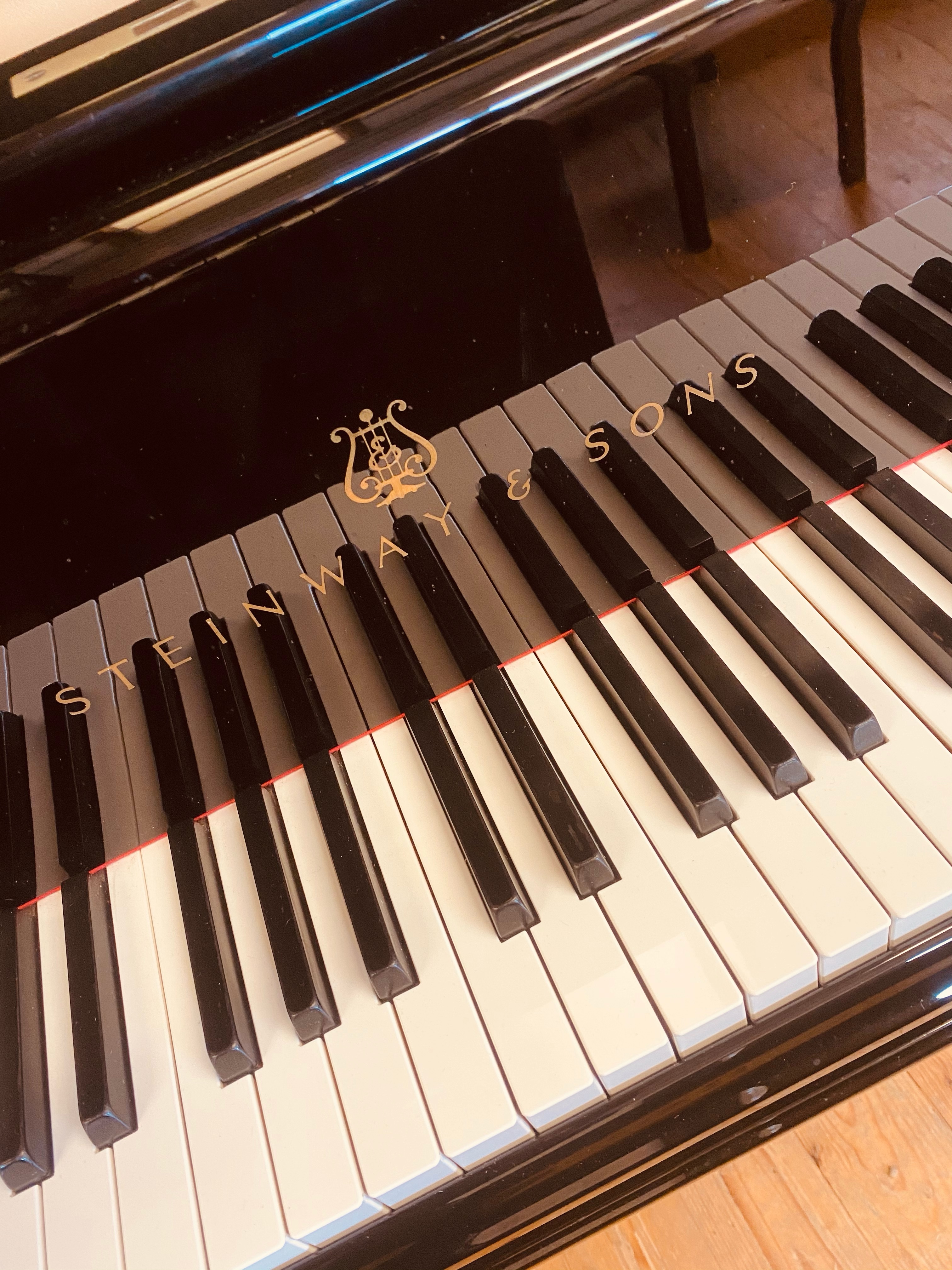

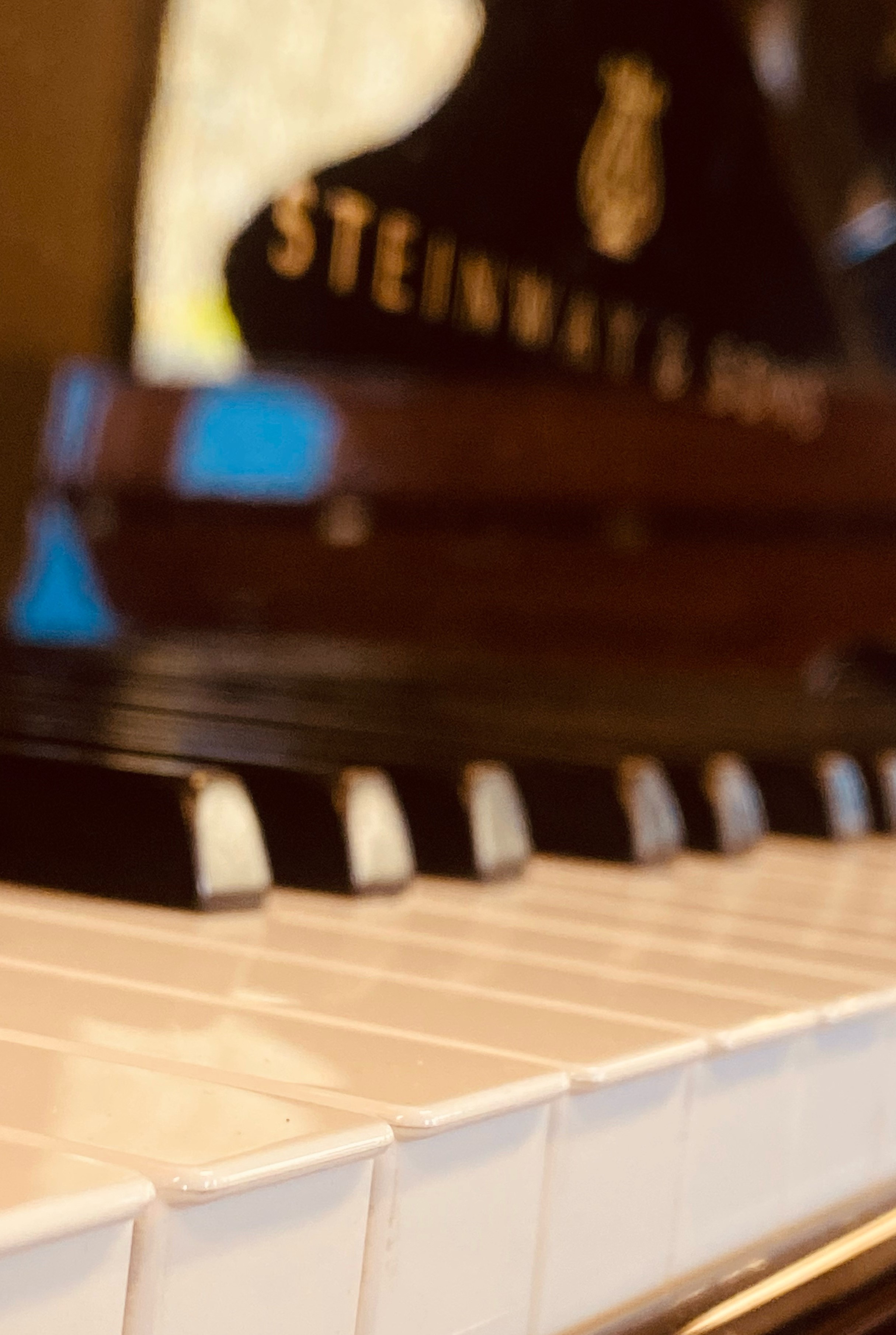

KEYS

European spruce, individually weighed-off. Chip-proof, stain-resistant coverings for naturals; slip-proof, abraded ebonized sharps. Durable Linden wood buttons reinforce keys over balance rail, permitting maximum tonal power with every strike. Longest key: 21″ (53.3 cm).

KEYBED

Made from planks of quarter-sawn spruce. Horizontal and vertical birch planks present a vented system for humidity escapement. Crowned and reverse-crowned action frame gives a snug fit, intensifies key movement and prevents “slapping” during heavy playing. Large maple dowel ends provide a solid mount for adjustable brass touch-regulating screws. Thickness: 1¾” (4.45 cm).

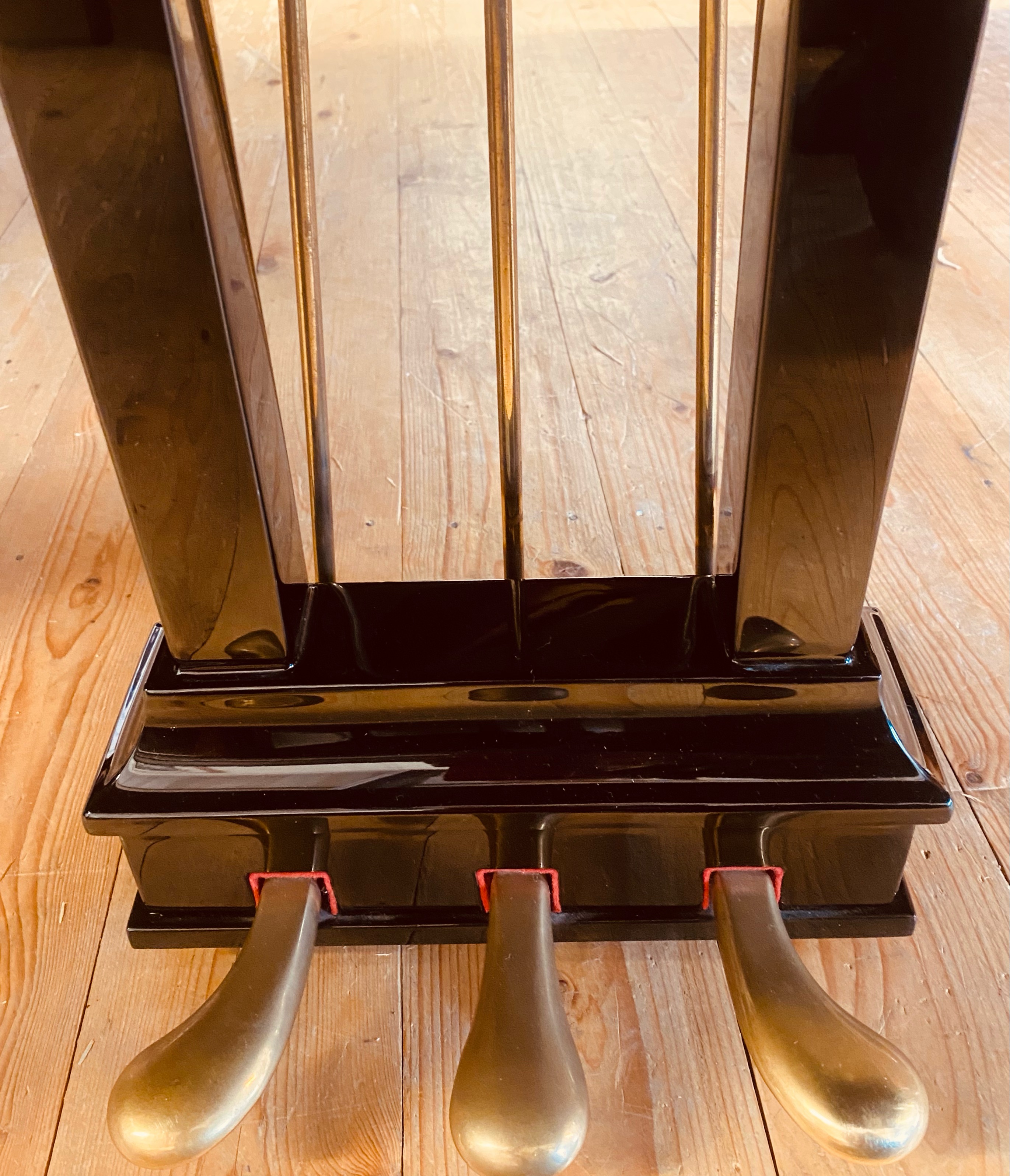

PEDALS

Heavy, solid brass. Soft, sustaining, and full sostenuto.
